Eli Silverstein

project Technology Vision demo

Vision demo

An AI vision demo device for FemtoAI’s neural silicon

Overview

This is a sweet device I made for my internship at FemtoAI. The company wanted something that shows off AI vision capabilities of the company neural silicon. It runs AI vision models like image classification, gesture recognition, person detections, and runs onboard AI audio demos. Overall a very magic feeling device. 6 separate PCBs stacked to interface with the many cameras and protocols along with power benchmarking features.

In the clip the screen reads PERSON 14fps · P(person) 99%.

Person detection on the device

Hardware

The six-board stack, the cameras and LCD, and the printed enclosure.

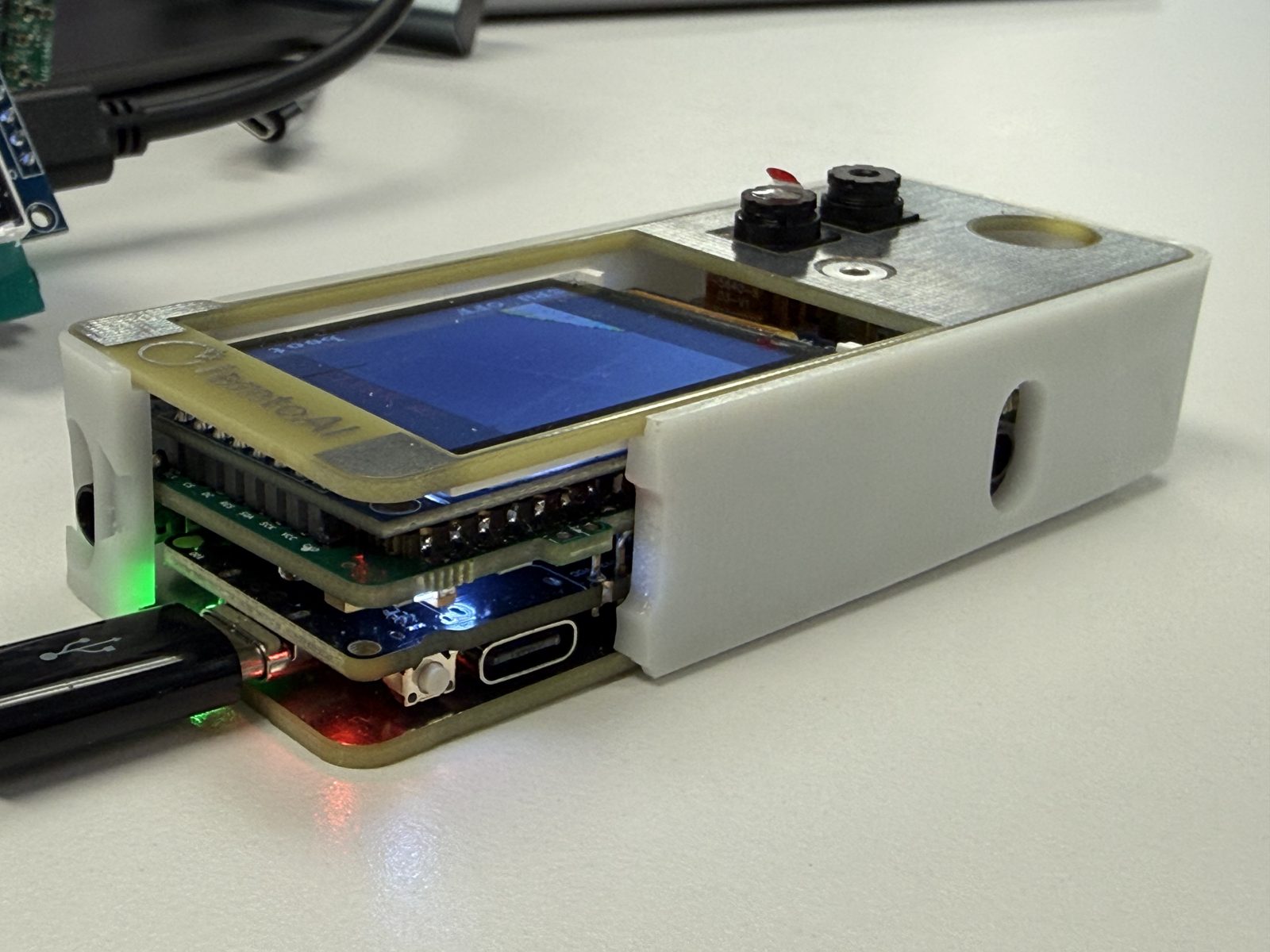

In the printed enclosure, screen lit
In the printed enclosure, screen lit

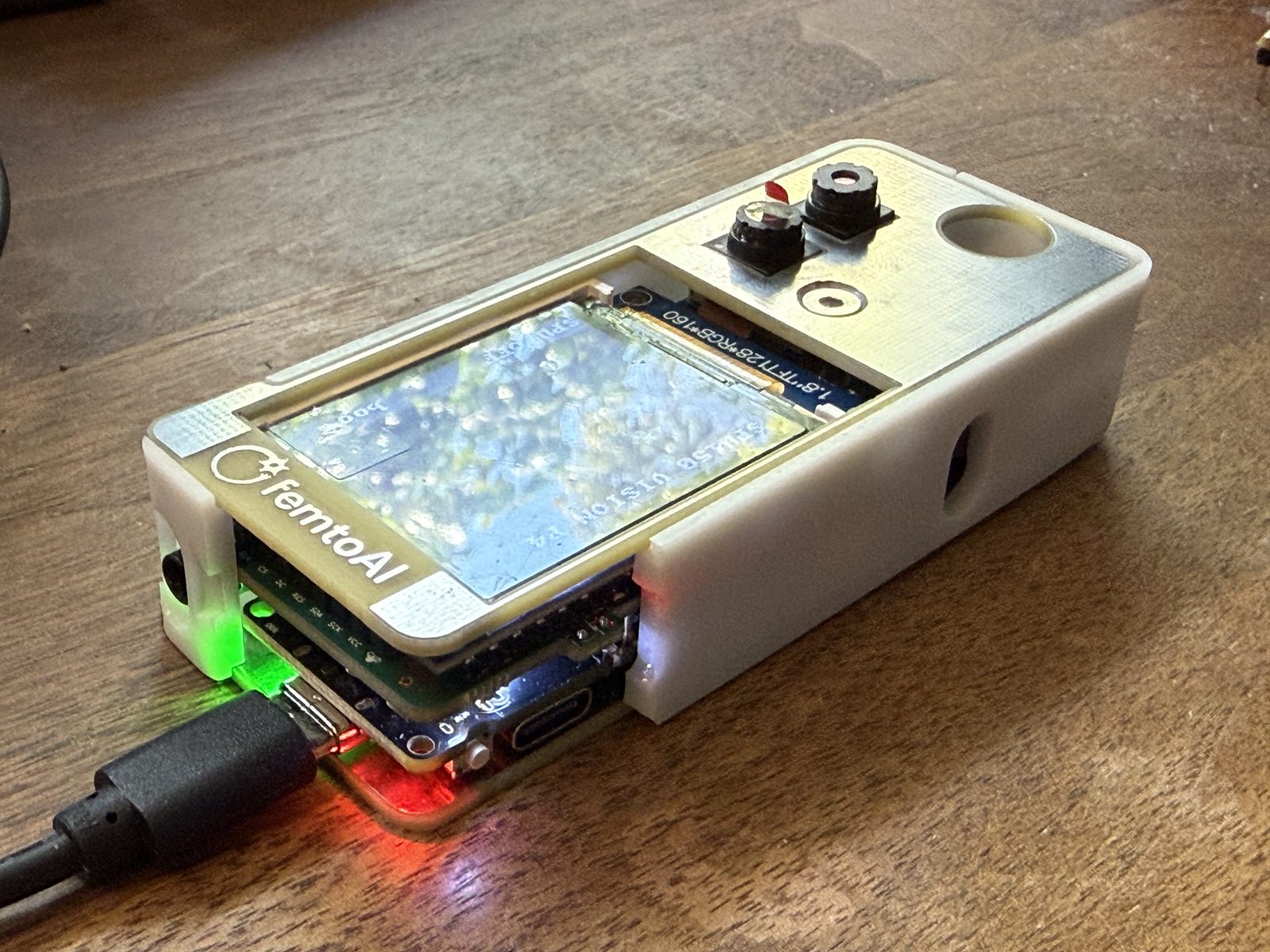

Camera side of the enclosure
Camera side of the enclosure

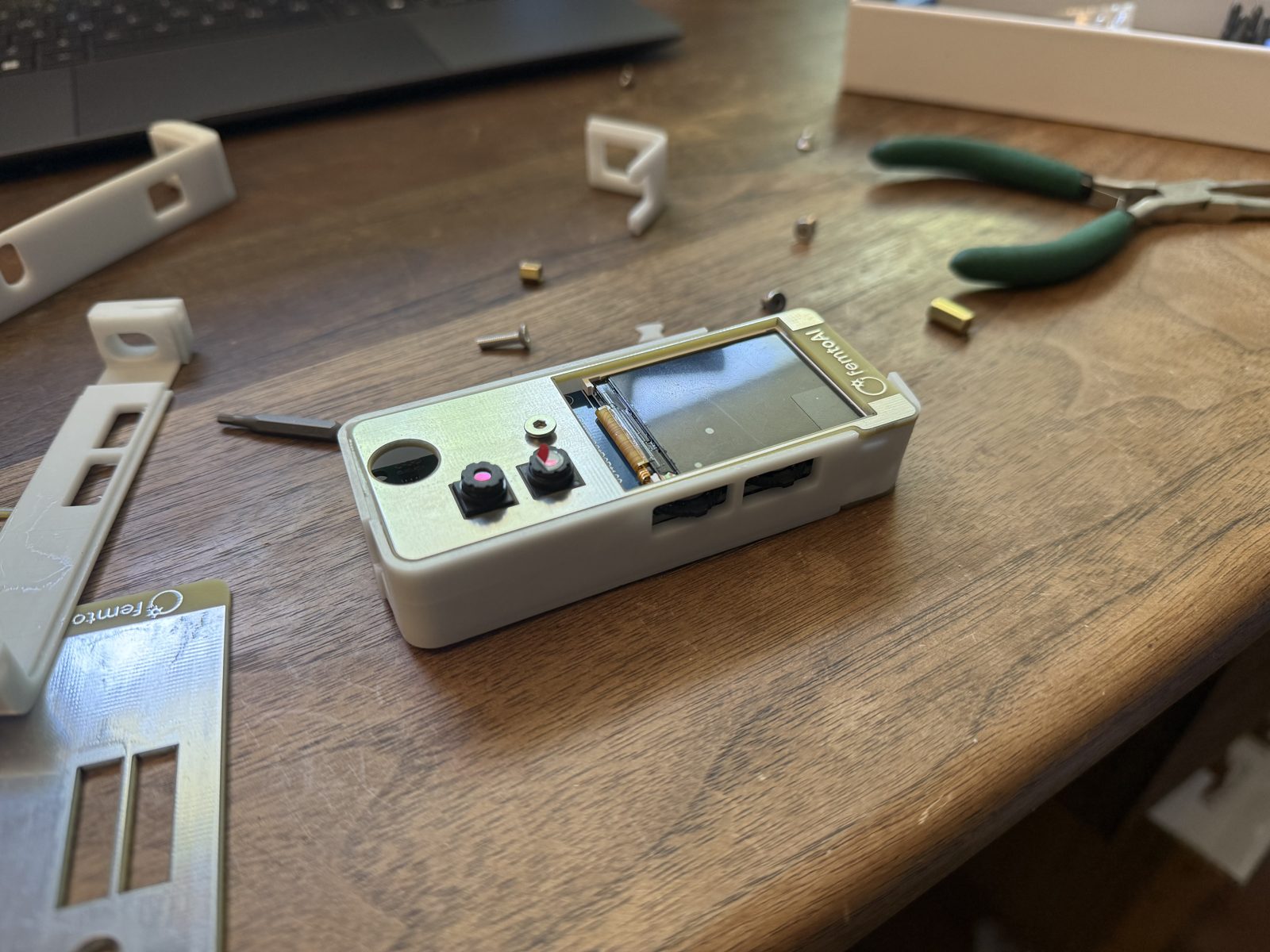

Enclosure halves and hardware
Enclosure halves and hardware

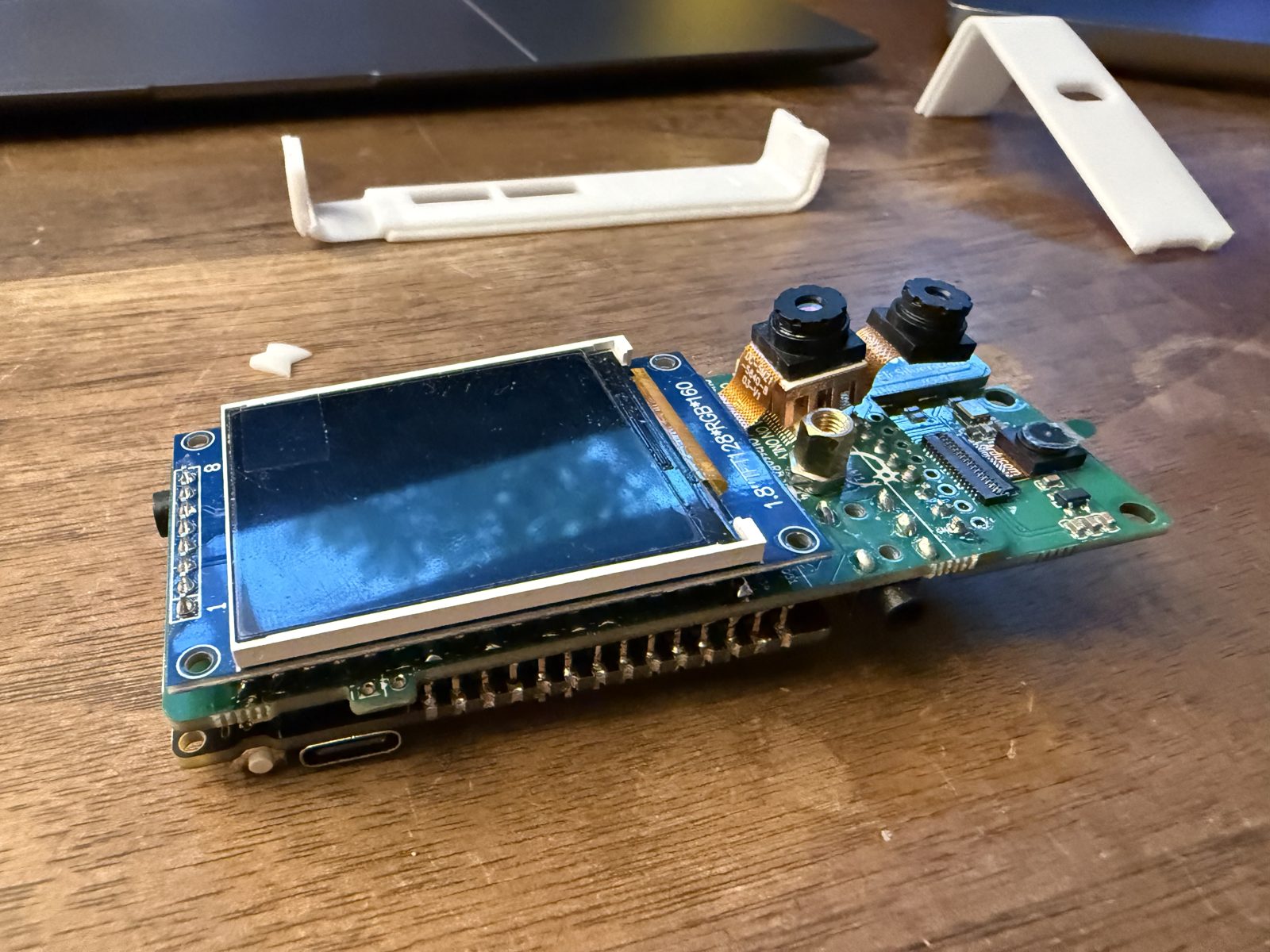

Board, LCD and camera module
Board, LCD and camera module

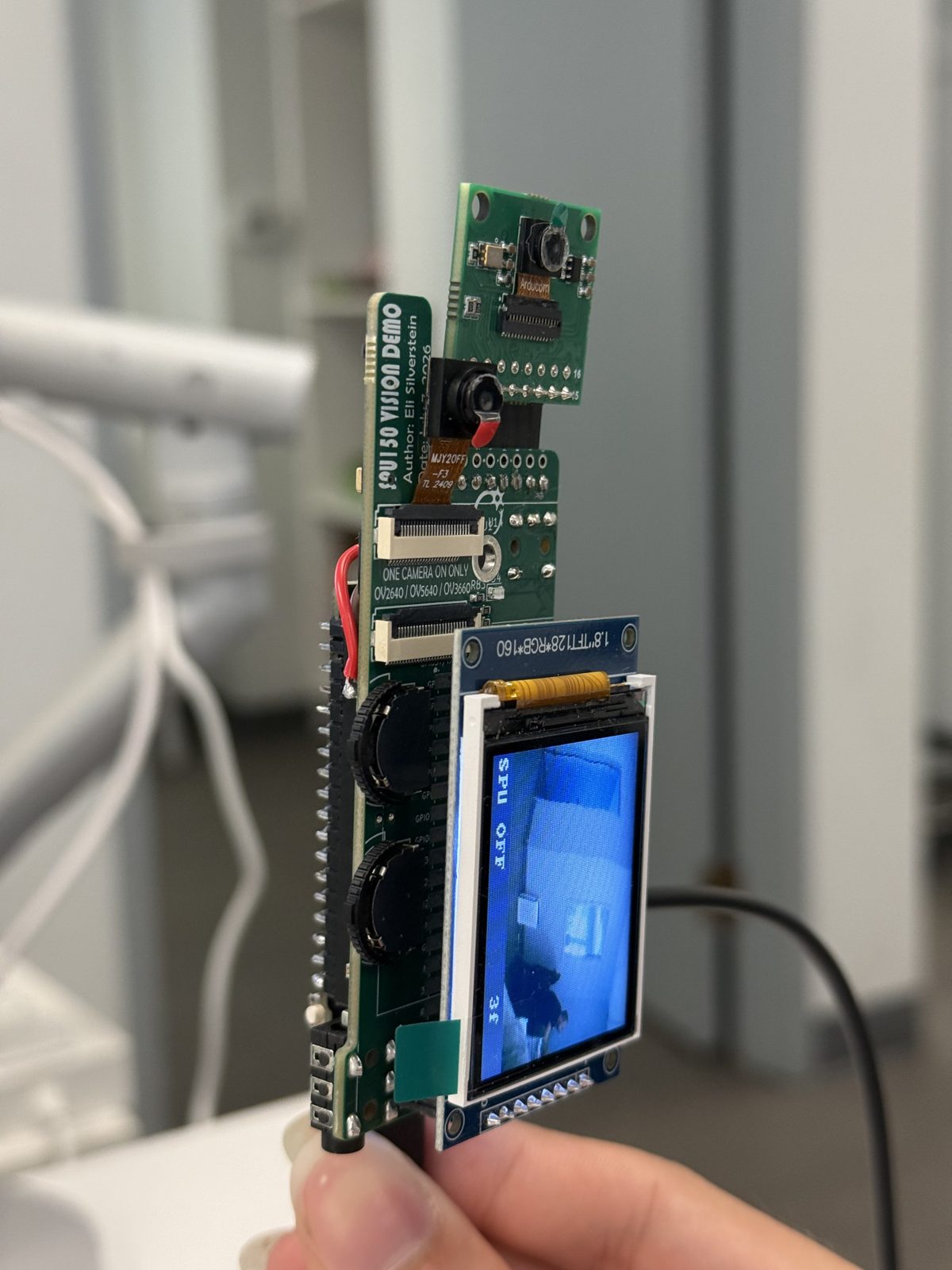

Held in the hand
Held in the hand

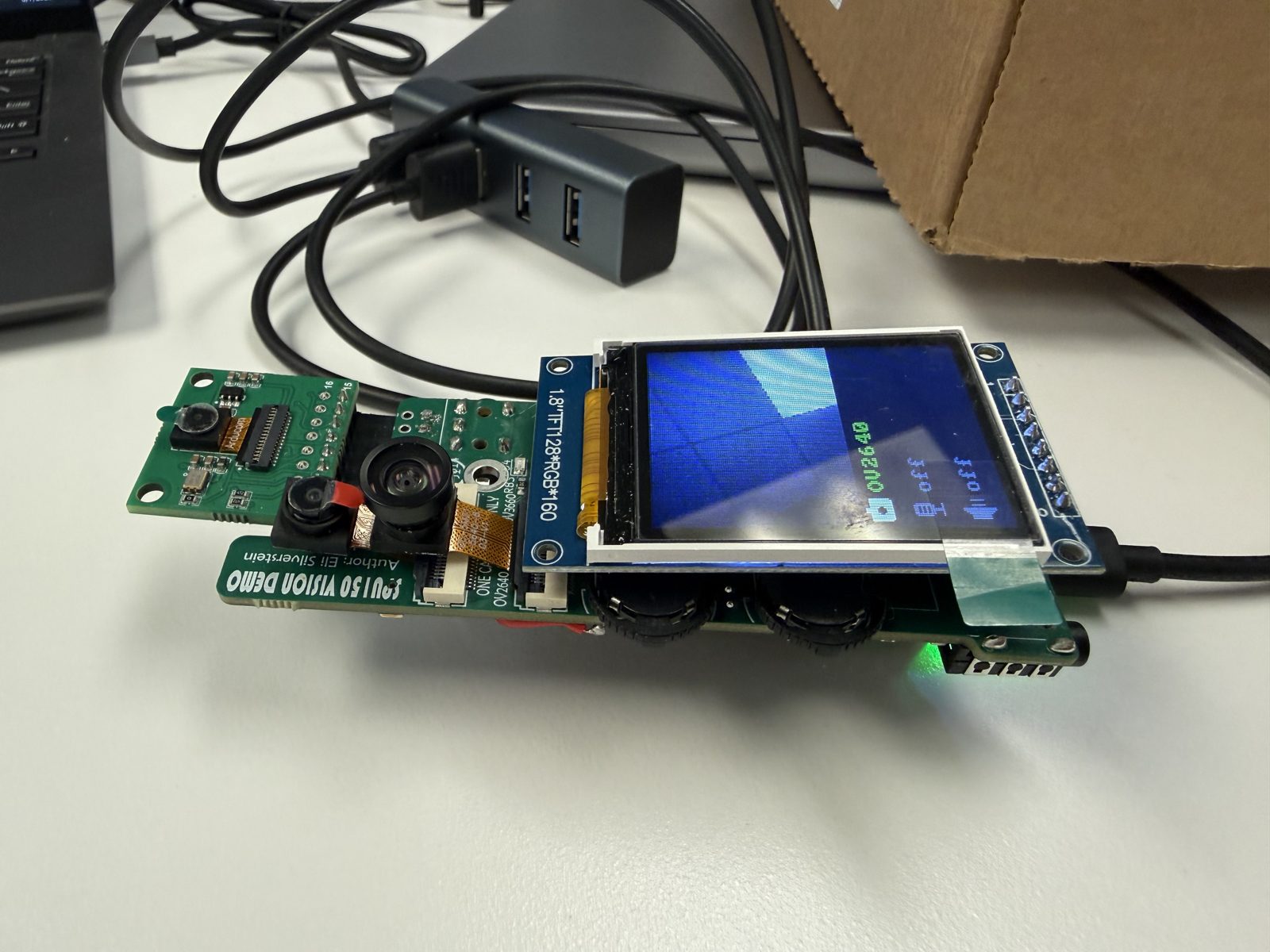

On the desk, running
On the desk, running

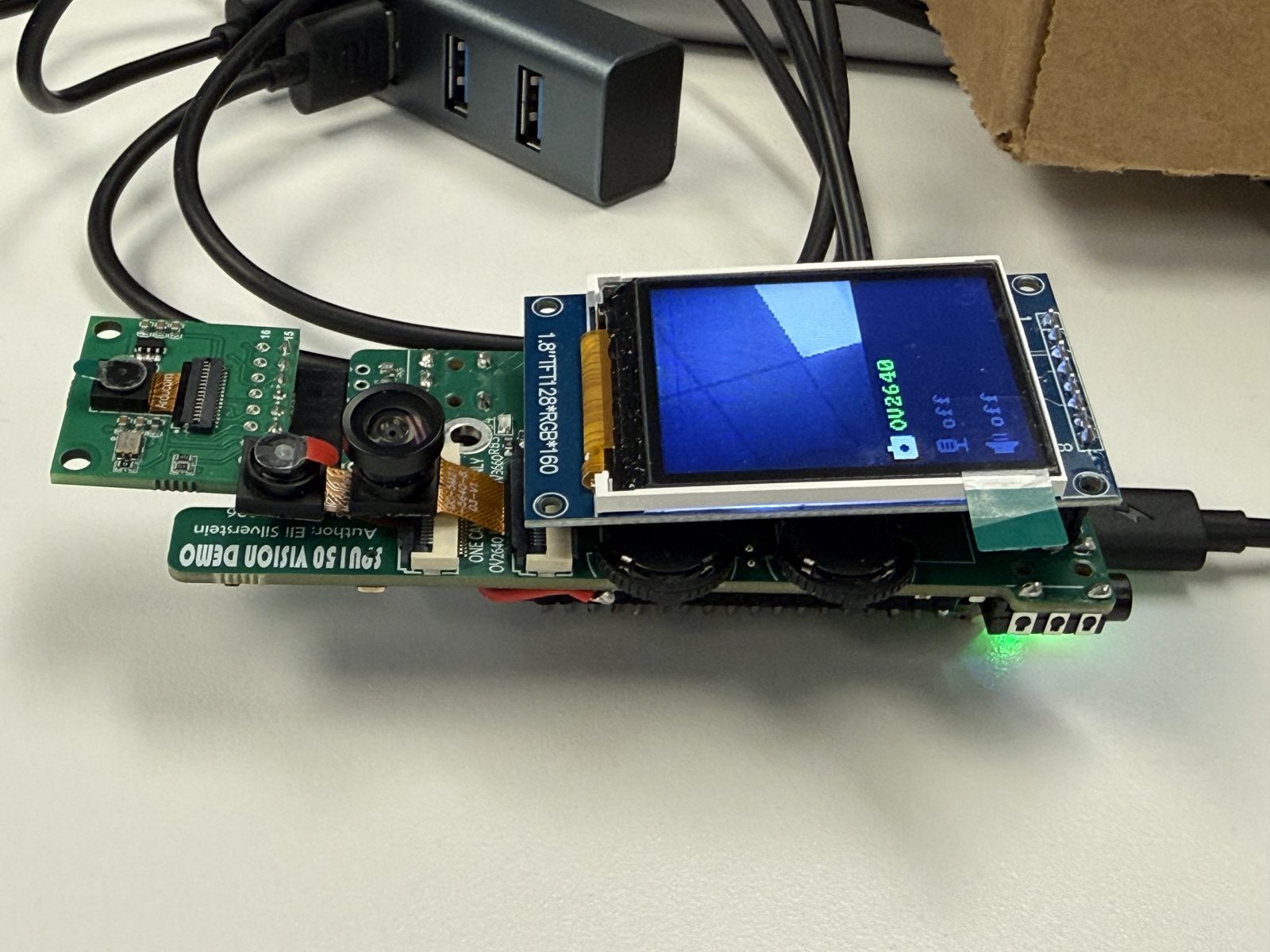

Another angle
Another angle

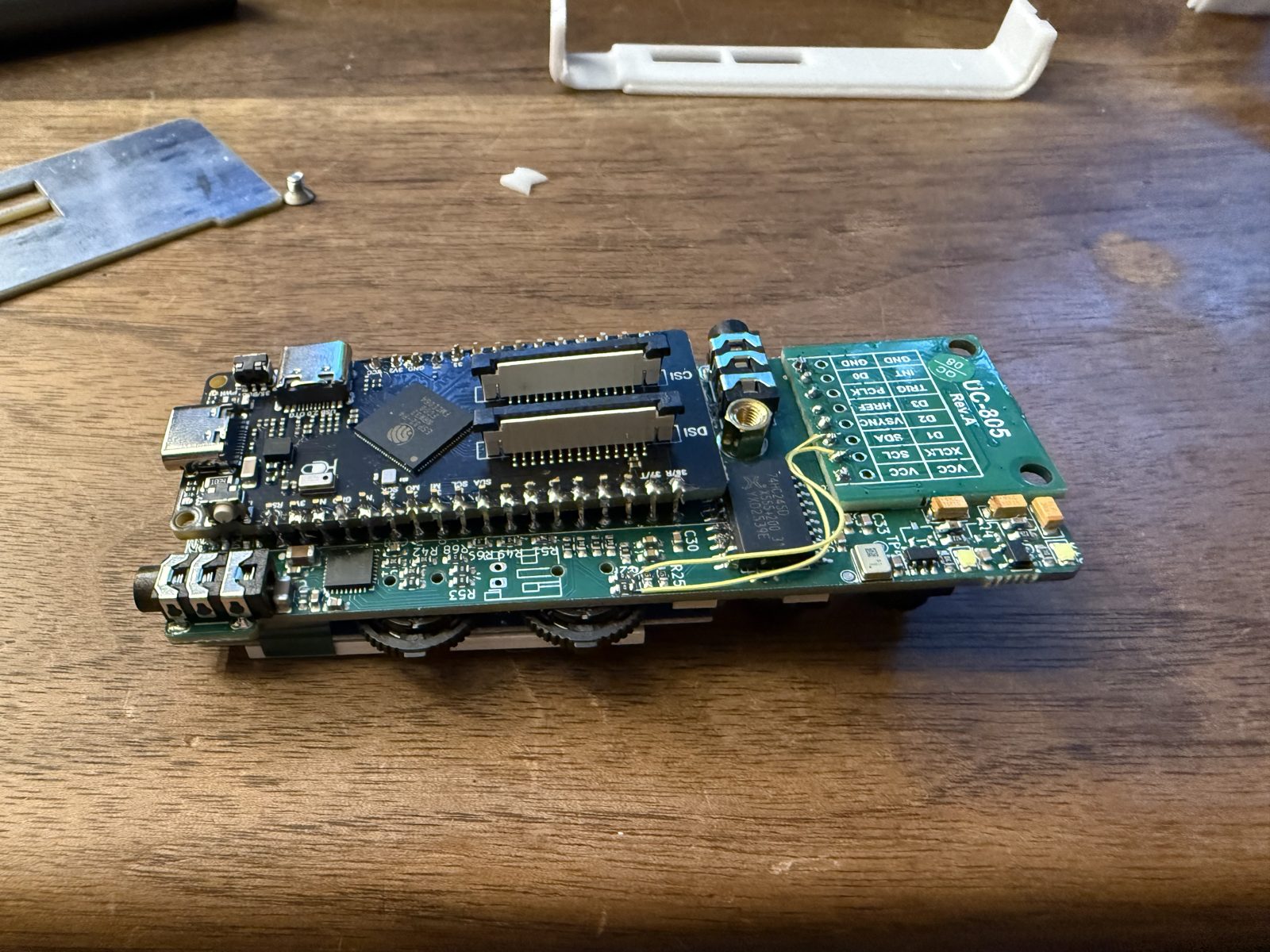

The board stack
The board stack

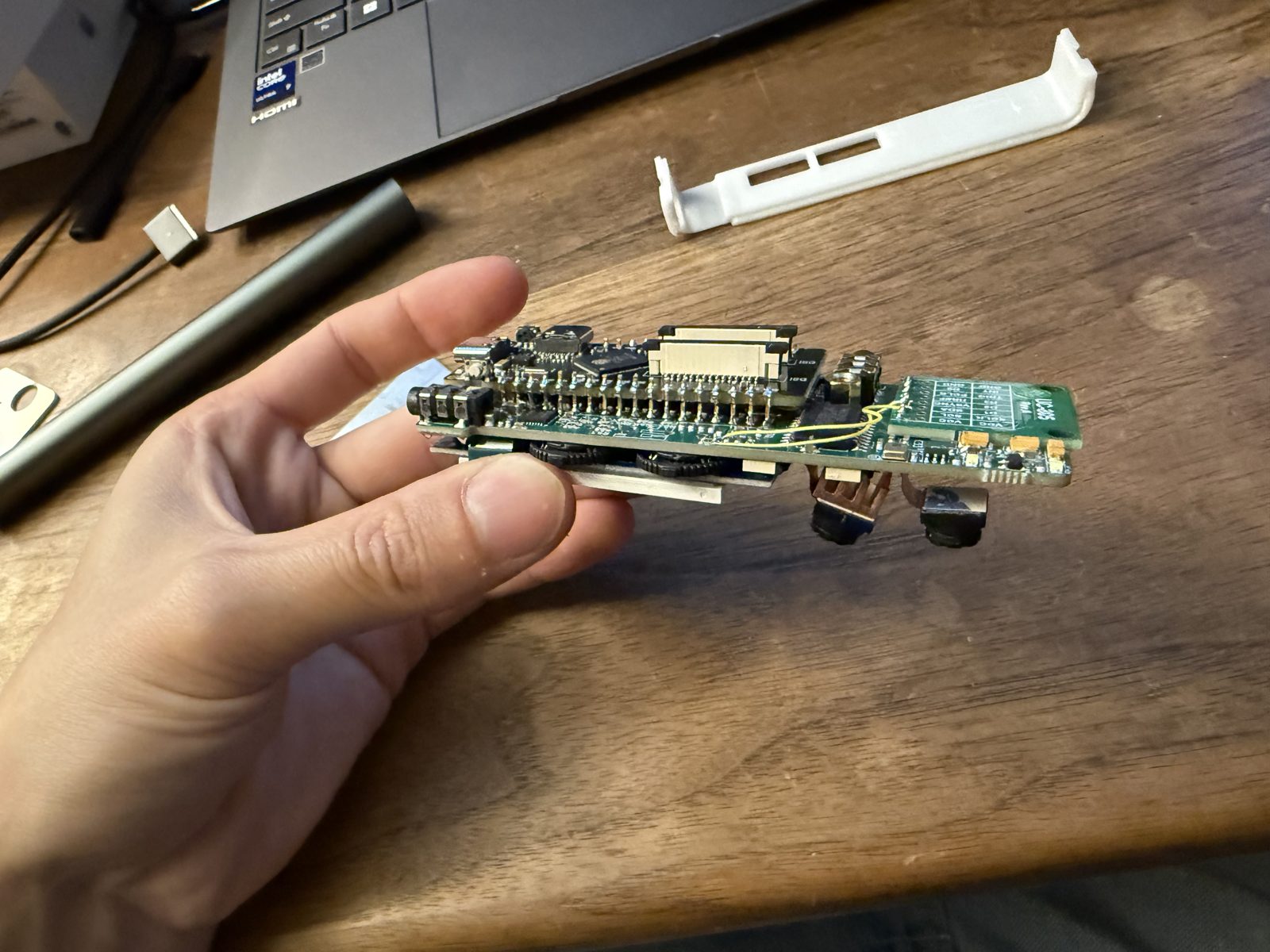

Board stack in hand
Board stack in hand

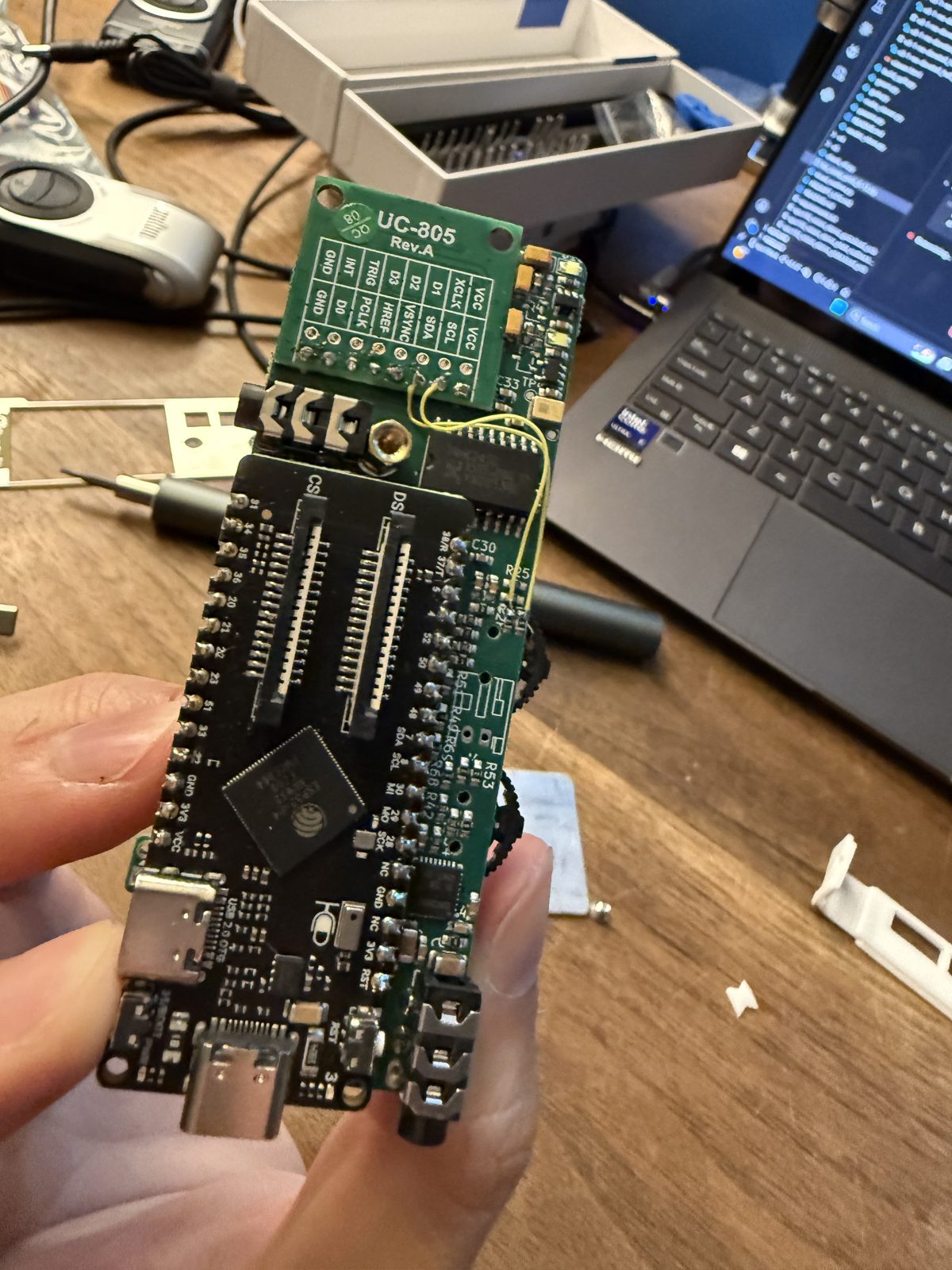

The bare board
The bare board
